Databricks Mosaicai Tracing Evals

Arize + Mosaic AI Agent Framework: Build, deploy, trace, evaluate and monitor a production quality LangGraph agent

Note: This notebook will only run in a Databricks workspace environment.

This notebook is adapted from Databricks's "Mosaic AI Agent Framework: Author and deploy a tool-calling LangGraph agent"

In this notebook you learn to:

• Author a tool-calling LangGraph agent wrapped with ChatAgent and Arize auto-instrumentation for tracing
• This agent has the capability to generate and execute python code in a stateless sandboxed environment
• Log and deploy the agent
• Evaluate the agent's python code using Arize LLM as a Judge evaluation
• Invoke the agent and view traces and evaluation results in the Arize platform
• Set up evaluation custom metrics and view them in monitors and dashboards in Arize

To learn more about authoring an agent using Mosaic AI Agent Framework, see Databricks documentation (AWS | Azure).

Prerequisites

• Databricks account and workspace (Sign up for free)

• Arize AX account (Sign up for free)

• Address all TODOs in this notebook.

Install Dependencies

Access Arize Space and API Keys from Databricks Secrets and set them as Environment Variables

Create a Arize API key and Space ID for the items below.
Set up Arize credentials using Databricks Secrets for secure access of keys.

Create a local configuration file to store project settings:

Create a file named "chain_config.yaml" with variables below. It should reside in the same folder as the notebook. These variables will be accessed from the agent code. Replace the example values with your own values:

ARIZE_PROJECT_NAME="databricks-langgraph-tool-calling-agent"
LLM_ENDPOINT_NAME="databricks-claude-3-7-sonnet"

Define the agent in code

Define the agent code in a single cell below. This lets you easily write the agent code to a local Python file, using the %%writefile magic command, for subsequent logging and deployment.

Tracing auto-instrumentation

Opentelemetry based auto-instrumentation for Langgraph exports traces to Arize.

Agent tools

This agent code adds the built-in Unity Catalog function system.ai.python_exec to the agent. The agent code also includes commented-out sample code for adding a vector search index to perform unstructured data retrieval.

system.ai.python_exec - Executes Python code in a stateless sandboxed environment and returns its stdout. The runtime cannot access files or read previous executions' output. All operations must be self-contained, using only standard Python libraries. Calls to other tools are prohibited.

For more examples of tools to add to your agent, see Databricks documentation (AWS | Azure)

Wrap the LangGraph agent using the ChatAgent interface

For compatibility with Databricks AI features, the LangGraphChatAgent class implements the ChatAgent interface to wrap the LangGraph agent. This example uses the provided convenience APIs ChatAgentState and ChatAgentToolNode for ease of use.

Databricks recommends using ChatAgent as it simplifies authoring multi-turn conversational agents using an open source standard. See MLflow's ChatAgent documentation.

Restart Python and reset environment variables

Log the agent as an MLflow model

Log the agent as code from the agent.py file. See MLflow - Models from Code.

Enable automatic authentication for Databricks resources

For the most common Databricks resource types, Databricks supports and recommends declaring resource dependencies for the agent upfront during logging. This enables automatic authentication passthrough when you deploy the agent. With automatic authentication passthrough, Databricks automatically provisions, rotates, and manages short-lived credentials to securely access these resource dependencies from within the agent endpoint.

To enable automatic authentication, specify the dependent Databricks resources when calling mlflow.pyfunc.log_model().

• TODO: If your Unity Catalog tool queries a [vector search index](docs link) or leverages [external functions](docs link), you need to include the dependent vector search index and UC connection objects, respectively, as resources. See docs (AWS | Azure).

Pre-deployment agent validation

Before registering and deploying the agent, perform pre-deployment checks using the mlflow.models.predict() API. See Databricks documentation (AWS | Azure).

Register the model to Unity Catalog

Before you deploy the agent, you must register the agent to Unity Catalog.

• TODO Update the catalog, schema, and model_name below to register the MLflow model to Unity Catalog.

Deploy the agent

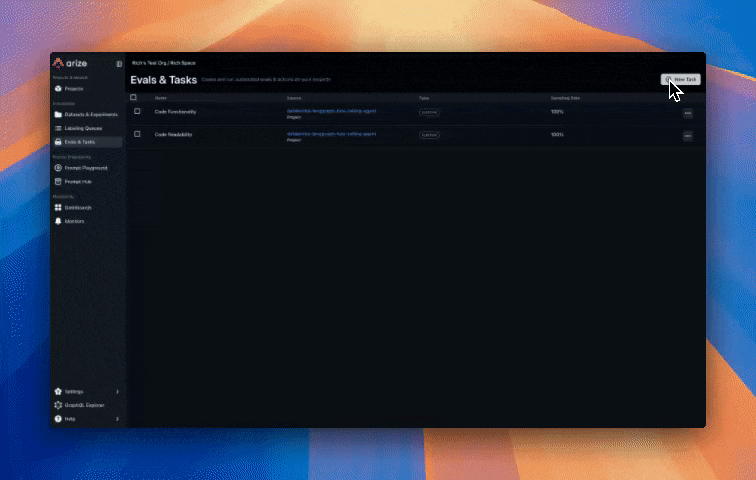

Configure Online Evaluations in Arize AX

Follow instructions here to setup up online evaluations in Arize AX.

Arize's Online Evaluations automatically run LLM-as-a-Judge based evaluations directly on the traces collected in the Arize platform from our Agent runs. This provides continuous quality monitoring without manual intervention. This approach scales to thousands of interactions, enabling data-driven improvements to your agent's performance. These evaluations are for assessing code generation quality that the agent produces, specifically:

• Code Correctness: Does the generated code solve the user's problem accurately?
• Code Readability: Is the code clean, well-structured, and maintainable?

References:

• LLM-as-a-Judge evaluation best practices: (Arize docs
• Agent evaluation best practices: (Arize Docs
• Automate running evaluations on your Traces and Spans: (Docs

Call the agent

There are several methods we can use to call our newly deployed agent in Databricks.

• REST API Calls: You can invoke your deployed agent through HTTP POST requests to the model serving endpoint. This method provides programmatic access, allowing you to integrate the agent into applications or automated workflows by sending JSON payloads with your input data and receiving structured responses.
• Model Serving UI: Databricks provides a built-in web interface where you can directly test your deployed agent. Simply navigate to the serving endpoint in the Databricks workspace, use the "Test" tab to input sample data, and see real-time responses without writing any code.
• Databricks AI Playground: This interactive environment lets you experiment with your agent in a conversational interface. You can test different prompts, observe the agent's behavior, and refine your interactions before implementing them in production scenarios.

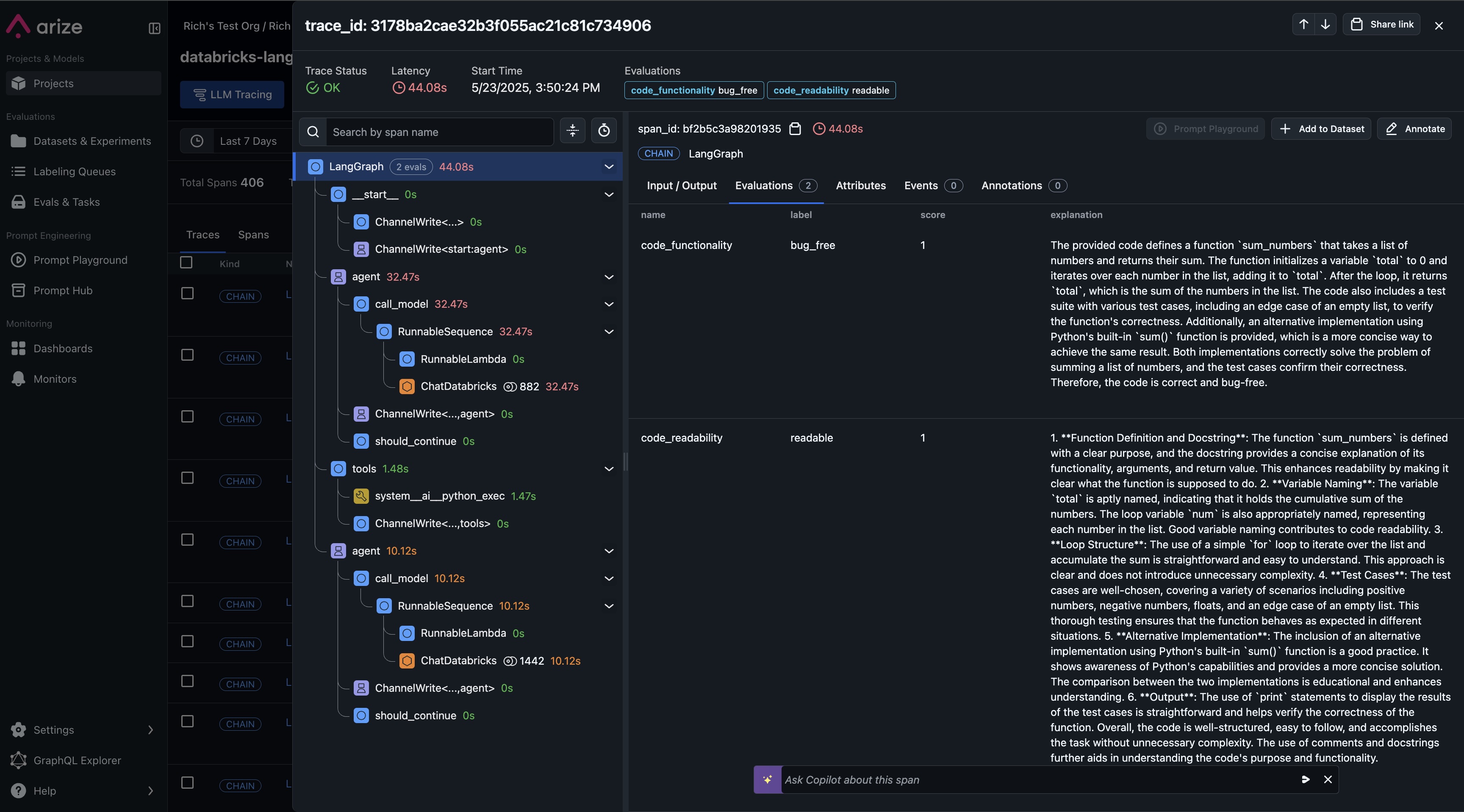

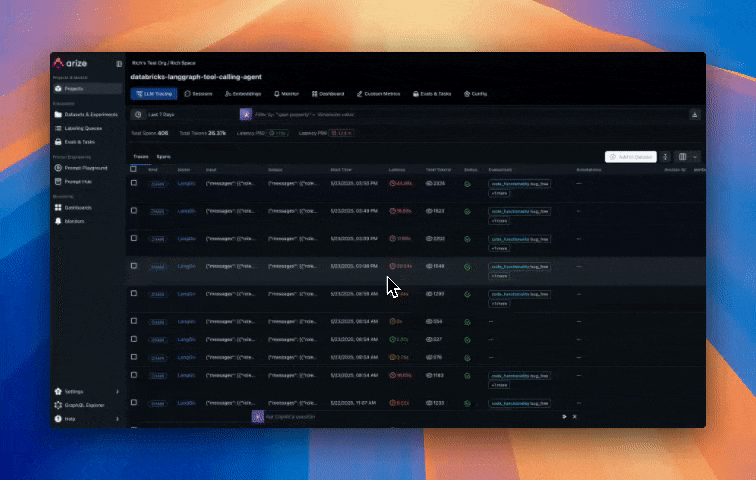

View traces and evaluation results in Arize

As you run your agent, traces are automatically sent to Arize. In the Arize platform, you can see agent execution details, tool invocations, latency breakdown by component, token usage and costs, errors and metadata captured for each span and function call. Additionally, evaluation labels are captured for every trace based on the code correctness and code readability evals we setup earlier.

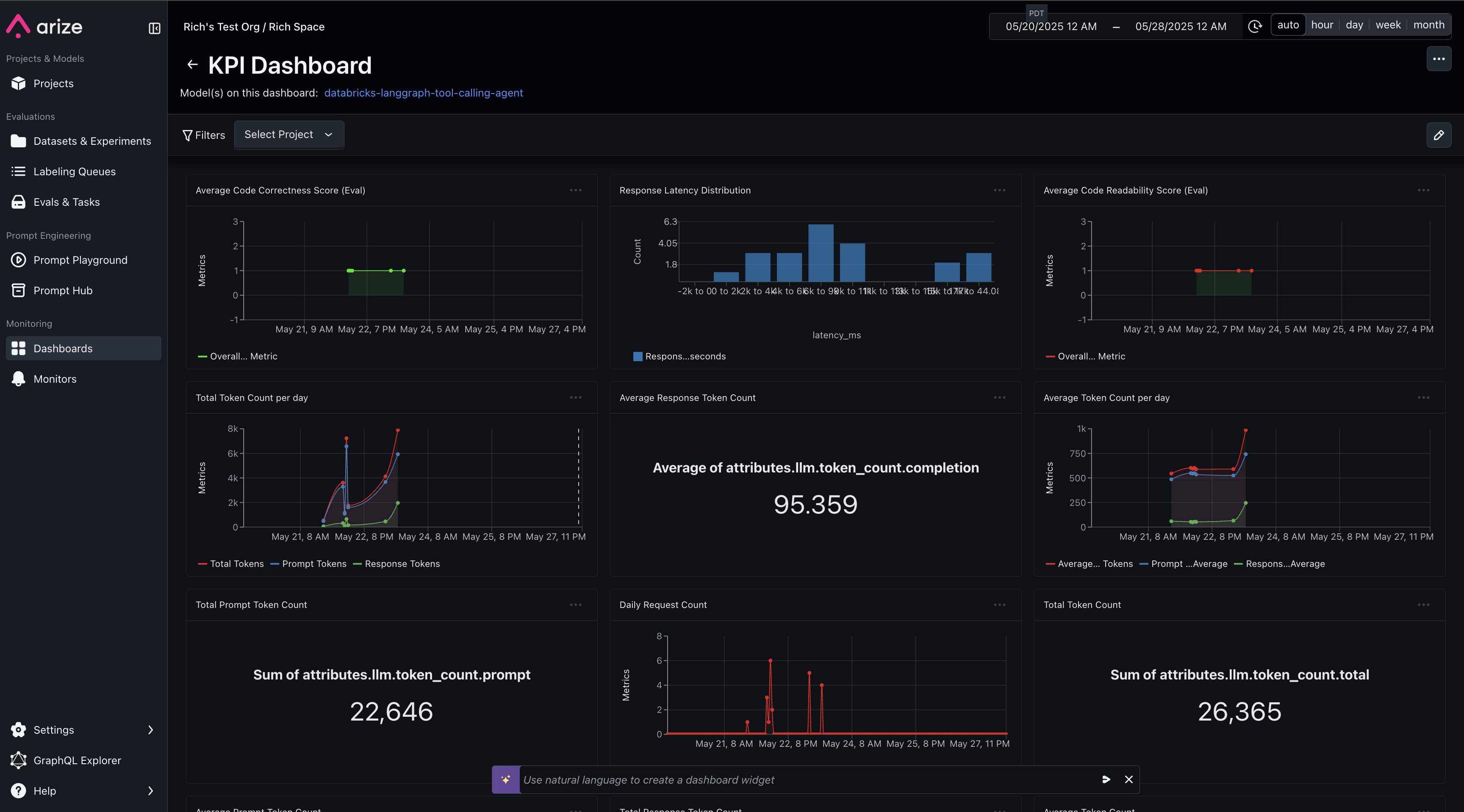

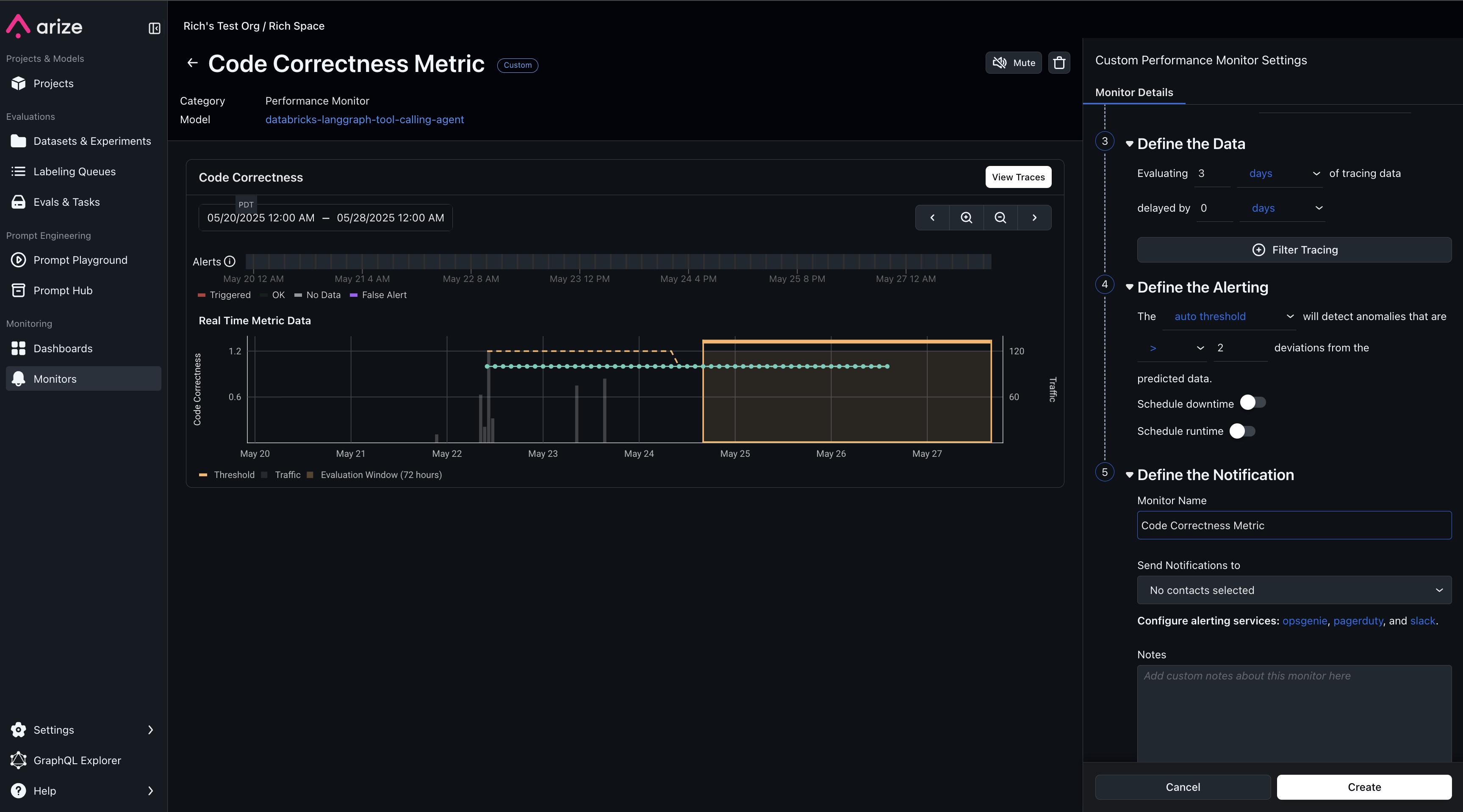

Monitoring, alerting and KPI dashboards in Arize AX

Turn any trace attribute and evaluation label into custom metrics. Build KPI driven dashboards and monitors that proactively alert you when any degradation in performance or quality of your agent occurs.

Next steps

After your agent is deployed, you can chat with it in AI playground to perform additional checks, share it with SMEs in your organization for feedback, or embed it in a production application. See Databricks documentation (AWS | Azure).
